品牌：GENESYS/创惟科技
封装：QFN-46
批号：23+
数量*：9000
描述：GL9510-S2 电子元器件 GENESYS/创惟科技 封装QFN-46 PD控制器 全新原装
产品简述

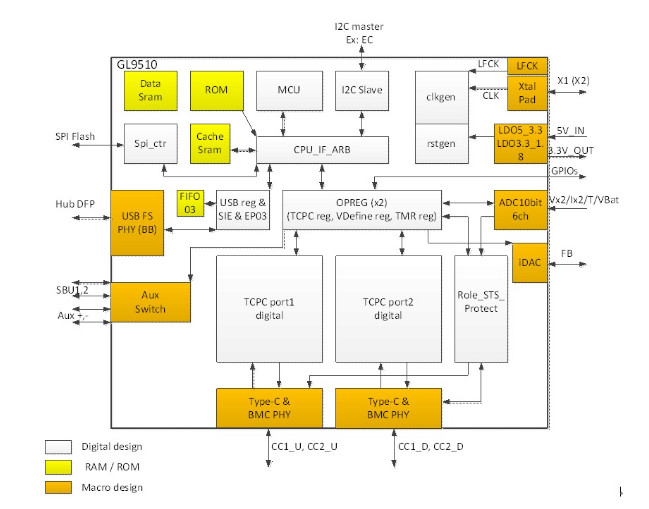

The Genesys GL9510 is an advanced 2-Port PD controller that supports DisplayPort Alternate mode and charge-through function. It is compliant to USB Power Delivery Specification Rev3.0 /2.0 and Type-C Port Controller Specification. The GL9510 integrates Type-C Channel Configuration (CC) function and BMC PHY to support PD messaging for power negotiation, power/data/Vconn swapping and Alternate mode function. The Type-C Port Manager (TCPM) for policy of 2 PD ports is achieved by an 8bit MCU and its application code in external Flash.
The GL9510 can easily support OVP/OCP/OTP since it has an integrated 6-channel 10-bit ADC. There are threshold comparators for each ADC channel. So the protecting activity can be made very quickly once an over-V/under-V/over-I/over-T occurs.
封装：QFN-46
批号：23+
数量*：9000
描述：GL9510-S2 电子元器件 GENESYS/创惟科技 封装QFN-46 PD控制器 全新原装
产品简述
The Genesys GL9510 is an advanced 2-Port PD controller that supports DisplayPort Alternate mode and charge-through function. It is compliant to USB Power Delivery Specification Rev3.0 /2.0 and Type-C Port Controller Specification. The GL9510 integrates Type-C Channel Configuration (CC) function and BMC PHY to support PD messaging for power negotiation, power/data/Vconn swapping and Alternate mode function. The Type-C Port Manager (TCPM) for policy of 2 PD ports is achieved by an 8bit MCU and its application code in external Flash.
The GL9510 can easily support OVP/OCP/OTP since it has an integrated 6-channel 10-bit ADC. There are threshold comparators for each ADC channel. So the protecting activity can be made very quickly once an over-V/under-V/over-I/over-T occurs.
